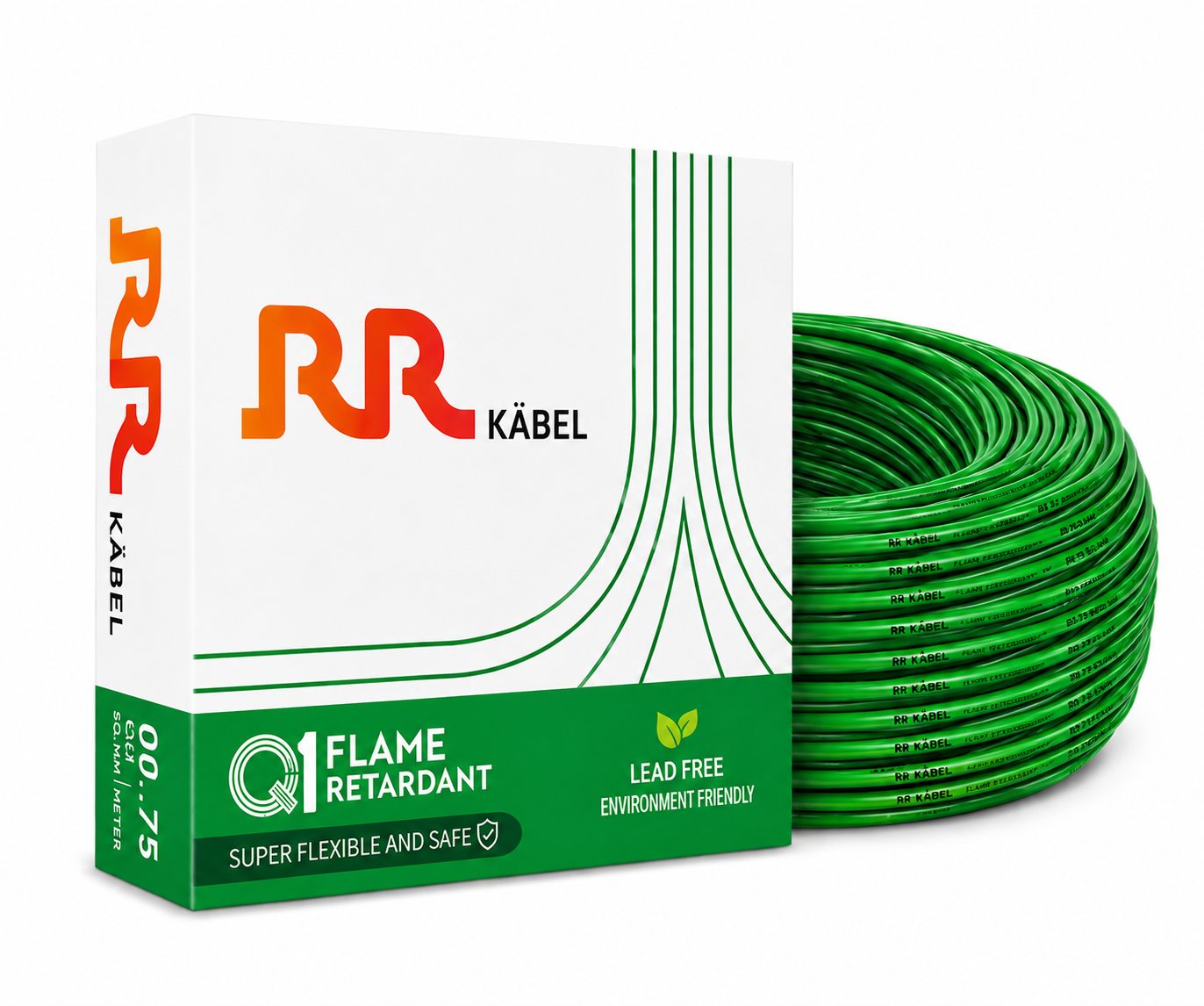

RR Kabel | Q1 Flame Retardant Cable | 0.75 Sq mm | Super Flexible Single Core | Current Rating: 9A Casing, 8A Concealed | 90m Coil | Pack of 1

SKU:

Q1FR-1

PPIN:

PI9SU2APN6

Brand:

RR Kabel

Category:

FR / FRLS Wires & Cables

Type:

physical

Stock:

10

Min order:

1

Unit price:

₹1,749.00

Country of origin:

IN

conductor_size:

0.75 sq.mm

coil_length:

90 m

wire_colour:

Green

Weight:

1 kg

Dimensions:

15.24 × 15.24 × 0.075 cm

RR Kabel Q1 Flame Retardant Super Flexible Single Core Cable is supplied in a 0.75 sq mm size with a 0.6 mm insulation thickness and a 2.3 mm overall diameter. The DC conductor resistance is 26.0 Ω/km at 20°C, with a current rating of 9 A.

• Q1 Flame Retardant Cable: Super flexible single-core cable designed for suitable electrical wiring applications in the specified 0.75 sq mm size.
• Technical Specifications: 0.6 mm insulation thickness, 2.3 mm approximate overall diameter and 26.0 Ω/km maximum DC conductor resistance at 20°C.
• Current Rating: Rated up to 9 A for casing installation and 8 A for concealed installation, 90m coil and Pack of 1.
